Operations

This is the work in progress operations guide for showing information, which are relevant for production use.

Skipper is proven to scale with number of routes beyond 300.000 routes per instance. Skipper is running with peaks to 65.000 http requests per second using multiple instances.

Connection Options

Skipper’s connection options are allowing you to set Go’s http.Server Options on the client side and http.Transport on the backend side.

“It is recommended to read this blog post about net http timeouts in order to better understand the impact of these settings.

Backend

Backend is the side skipper opens a client connection to.

Closing idle connections is required for DNS failover, because Go’s http.Transport caches DNS lookups and needs to create new connections for doing so. Skipper will start a goroutine and use the specified time.Duration to call CloseIdleConnections() on that http.Transport.

-close-idle-conns-period string
    period of closing all idle connections in seconds or as a
    duration string. Not closing when less than 0 (default "20")

This will set MaxIdleConnsPerHost on the http.Transport to limit the number of idle connections per backend such that we do not run out of sockets.

-idle-conns-num int
    maximum idle connections per backend host (default 64)

This will set MaxIdleConns on the http.Transport to limit the number for all backends such that we do not run out of sockets.

-disable-http-keepalives bool
    forces backend to always create a new connection

This will set DisableKeepAlives on the http.Transport to disable HTTP keep-alive and to only use the connection for single request.

-max-idle-connection-backend int
    sets the maximum idle connections for all backend connections

This will set TLSHandshakeTimeout on the http.Transport to have timeouts based on TLS connections.

-tls-timeout-backend duration
    sets the TLS handshake timeout for backend connections (default 1m0s)

This will set Timeout on net.Dialer that is the implementation of DialContext, which is the TCP connection pool used in the http.Transport.

-timeout-backend duration
    sets the TCP client connection timeout for backend connections (default 1m0s)

This will set KeepAlive on net.Dialer that is the implementation of DialContext, which is the TCP connection pool used in the http.Transport.

-keepalive-backend duration
    sets the keepalive for backend connections (default 30s)

This will set DualStack (IPv4 and IPv6) on net.Dialer that is the implementation of DialContext, which is the TCP connection pool used in the http.Transport.

-enable-dualstack-backend
    enables DualStack for backend connections (default true)

Client

Client is the side skipper gets incoming calls from. Here we can set timeouts in different parts of the http connection.

This will set ReadTimeout in http.Server handling incoming calls from your clients.

-read-timeout-server duration
    set ReadTimeout for http server connections (default 5m0s)

This will set ReadHeaderTimeout in http.Server handling incoming calls from your clients.

-read-header-timeout-server duration
    set ReadHeaderTimeout for http server connections (default 1m0s)

This will set WriteTimeout in http.Server handling incoming calls from your clients.

-write-timeout-server duration
    set WriteTimeout for http server connections (default 1m0s)

This will set IdleTimeout in http.Server handling incoming calls from your clients. If you have another loadbalancer layer in front of your Skipper http routers, for example AWS Application Load Balancers, you should make sure, that Skipper’s idle-timeout-server setting is bigger than the idle timeout from the loadbalancer in front. Wrong combinations of idle timeouts can lead to a few unexpected HTTP 502.

-idle-timeout-server duration
    maximum idle connections per backend host (default 1m0s)

This configures maximum number of requests served by server connections:

-keepalive-requests-server int
    sets maximum number of requests for http server connections. The connection is closed after serving this number of requests. Default is 0 for unlimited.

This configures maximum age for server connections:

-keepalive-server duration
    sets maximum age for http server connections. The connection is closed after it existed for this duration. Default is 0 for unlimited.

This will set MaxHeaderBytes in http.Server to limit the size of the http header from your clients.

-max-header-bytes int
    set MaxHeaderBytes for http server connections (default 1048576)

TCP LIFO

Skipper implements now controlling the maximum incoming TCP client connections.

The purpose of the mechanism is to prevent Skipper requesting more memory than available in case of too many concurrent connections, especially in an autoscaling deployment setup, in those case when the scaling is not fast enough to follow sudden connection spikes.

This solution relies on a listener implementation combined with a LIFO queue. It allows only a limited number of connections being handled concurrently, defined by the max concurrency configuration. When the max concurrency limit is reached, the new incoming client connections are stored in a queue. When an active (accepted) connection is closed, the most recent pending connection from the queue will be accepted. When the queue is full, the oldest pending connection is closed and dropped, and the new one is inserted into the queue.

The feature can be enabled with the -enable-tcp-queue flag. The maximum concurrency can bet set with the -max-tcp-listener-concurrency flag, or, if this flag is not set, then Skipper tries to infer the maximum accepted concurrency from the system by reading the /sys/fs/cgroup/memory/memory.limit_in_bytes file. In this case, it uses the average expected per request memory requirement, which can be set with the -expected-bytes-per-request flag.

Note that the automatically inferred limit may not work as expected in an environment other than cgroups v1.

OAuth2 Tokeninfo

OAuth2 filters integrate with external services and have their own connection handling. Outgoing calls to these services have a default timeout of 2s, which can be changed by the flag -oauth2-tokeninfo-timeout=<OAuthTokeninfoTimeout>.

OAuth2 Tokenintrospection RFC7662

OAuth2 filters integrate with external services and have their own connection handling. Outgoing calls to these services have a default timeout of 2s, which can be changed by the flag -oauth2-tokenintrospect-timeout=<OAuthTokenintrospectionTimeout>.

Monitoring

Monitoring is one of the most important things you need to run in production and skipper has a godoc page for the metrics package, describing options and most keys you will find in the metrics handler endpoint. The default is listening on :9911/metrics. You can modify the listen port with the -support-listener flag. Metrics can exposed using formats Codahale (json) or Prometheus and be configured by -metrics-flavour=, which defaults to codahale. To expose both formats you can use a comma separated list: -metrics-flavour=codahale,prometheus.

Prometheus

In case you want to get metrics in Prometheus format exposed, use this option to enable it:

-metrics-flavour=prometheus

It will return Prometheus metrics on the common metrics endpoint :9911/metrics.

To monitor skipper we recommend the following queries:

• P99 backend latency: histogram_quantile(0.99, sum(rate(skipper_serve_host_duration_seconds_bucket{}[1m])) by (le))
• HTTP 2xx rate: histogram_quantile(0.99, sum(rate(skipper_serve_host_duration_seconds_bucket{code =~ "2.*"}[1m])) by (le) )
• HTTP 4xx rate: histogram_quantile(0.99, sum(rate(skipper_serve_host_duration_seconds_bucket{code =~ "4.*"}[1m])) by (le) )
• HTTP 5xx rate: histogram_quantile(0.99, sum(rate(skipper_serve_host_duration_seconds_bucket{code =~ "52.*"}[1m])) by (le) )
• Max goroutines (depends on label selector): max(go_goroutines{application="skipper-ingress"})
• Max threads (depends on label selector): max(go_threads{application="skipper-ingress"})
• max heap memory in use in MB (depends on label selector): max(go_memstats_heap_inuse_bytes{application="skipper-ingress"}) / 1024 / 1000
• Max number of heap objects (depends on label selector): max(go_memstats_heap_objects{application="skipper-ingress"})
• Max of P75 Go GC runtime in ms (depends on label selector): max(go_gc_duration_seconds{application="skipper-ingress",quantile="0.75"}) * 1000 * 1000
• P99 request filter duration (depends on label selector): histogram_quantile(0.99, sum(rate(skipper_filter_request_duration_seconds_bucket{application="skipper-ingress"}[1m])) by (le) )
• P99 response filter duration (depends on label selector): histogram_quantile(0.99, sum(rate(skipper_filter_response_duration_seconds_bucket{application="skipper-ingress"}[1m])) by (le) )
• If you use Kubernetes limits or Linux cgroup CFS quotas (depends on label selector): sum(rate(container_cpu_cfs_throttled_periods_total{container_name="skipper-ingress"}[1m]))

You may add static metrics labels like version using Prometheus relabeling feature.

Connection metrics

This option will enable known loadbalancer connections metrics, like counters for active and new connections. This feature sets a metrics callback on http.Server and uses a counter to collect http.ConnState.

-enable-connection-metrics
    enables connection metrics for http server connections

It will expose them in /metrics, for example json structure looks like this example:

{
  "counters": {
    "skipper.lb-conn-active": {
      "count": 6
    },
    "skipper.lb-conn-closed": {
      "count": 6
    },
    "skipper.lb-conn-idle": {
      "count": 6
    },
    "skipper.lb-conn-new": {
      "count": 6
    }
  },
  /* stripped a lot of metrics here */
}

LIFO metrics

When enabled in the routes, LIFO queues can control the maximum concurrency level proxied to the backends and mitigate the impact of traffic spikes. The current level of concurrency and the size of the queue can be monitored with gauges per each route using one of the lifo filters. To enable monitoring for the lifo filters, use the command line option:

-enable-route-lifo-metrics

When queried, it will return metrics like:

{
  "gauges": {
    "skipper.lifo.routeXYZ.active": {
      "value": 245
    },
    "skipper.lifo.routeXYZ.queued": {
      "value": 27
    }
  }
}

Application metrics

Application metrics for your proxied applications you can enable with the option:

-serve-host-metrics
    enables reporting total serve time metrics for each host
-serve-route-metrics
    enables reporting total serve time metrics for each route

This will make sure you will get stats for each “Host” header or the route name as “timers”. The following is an example for -serve-host-metrics:

"timers": {
  "skipper.servehost.app1_example_com.GET.200": {
    "15m.rate": 0.06830666203045982,
    "1m.rate": 2.162612637718806e-06,
    "5m.rate": 0.008312609284452856,
    "75%": 236603815,
    "95%": 236603815,
    "99%": 236603815,
    "99.9%": 236603815,
    "count": 3,
    "max": 236603815,
    "mean": 116515451.66666667,
    "mean.rate": 0.0030589345776699827,
    "median": 91273391,
    "min": 21669149,
    "stddev": 89543653.71950394
  },
  "skipper.servehost.app1_example_com.GET.304": {
    "15m.rate": 0.3503336738177459,
    "1m.rate": 0.07923086447313292,
    "5m.rate": 0.27019839341602214,
    "75%": 99351895.25,
    "95%": 105381847,
    "99%": 105381847,
    "99.9%": 105381847,
    "count": 4,
    "max": 105381847,
    "mean": 47621612,
    "mean.rate": 0.03087161486272533,
    "median": 41676170.5,
    "min": 1752260,
    "stddev": 46489302.203724876
  },
  "skipper.servehost.app1_example_com.GET.401": {
    "15m.rate": 0.16838468990057648,
    "1m.rate": 0.01572861413072501,
    "5m.rate": 0.1194724817779537,
    "75%": 91094832,
    "95%": 91094832,
    "99%": 91094832,
    "99.9%": 91094832,
    "count": 2,
    "max": 91094832,
    "mean": 58090623,
    "mean.rate": 0.012304914018033056,
    "median": 58090623,
    "min": 25086414,
    "stddev": 33004209
  }
},

Note you can reduce the dimension of the metrics by removing the HTTP status code and method from it. Use the -serve-method-metric=false and/or -serve-status-code-metric=false. Both flags are enabled by default. For prometheus metrics flavour, a counter with both the HTTP method and status code can be enabled with -serve-host-counter or -serve-route-counter, even if these flags are disabled.

To change the sampling type of how metrics are handled from uniform to exponential decay, you can use the following option, which is better for not so huge utilized applications (less than 100 requests per second):

-metrics-exp-decay-sample
    use exponentially decaying sample in metrics

Go metrics

Metrics from the go runtime memstats are exposed from skipper to the metrics endpoint, default listener :9911, on path /metrics

Go metrics - Codahale

"gauges": {
  "skipper.runtime.MemStats.Alloc": {
    "value": 3083680
  },
  "skipper.runtime.MemStats.BuckHashSys": {
    "value": 1452675
  },
  "skipper.runtime.MemStats.DebugGC": {
    "value": 0
  },
  "skipper.runtime.MemStats.EnableGC": {
    "value": 1
  },
  "skipper.runtime.MemStats.Frees": {
    "value": 121
  },
  "skipper.runtime.MemStats.HeapAlloc": {
    "value": 3083680
  },
  "skipper.runtime.MemStats.HeapIdle": {
    "value": 778240
  },
  "skipper.runtime.MemStats.HeapInuse": {
    "value": 4988928
  },
  "skipper.runtime.MemStats.HeapObjects": {
    "value": 24005
  },
  "skipper.runtime.MemStats.HeapReleased": {
    "value": 0
  },
  "skipper.runtime.MemStats.HeapSys": {
    "value": 5767168
  },
  "skipper.runtime.MemStats.LastGC": {
    "value": 1516098381155094500
  },
  "skipper.runtime.MemStats.Lookups": {
    "value": 2
  },
  "skipper.runtime.MemStats.MCacheInuse": {
    "value": 6944
  },
  "skipper.runtime.MemStats.MCacheSys": {
    "value": 16384
  },
  "skipper.runtime.MemStats.MSpanInuse": {
    "value": 77368
  },
  "skipper.runtime.MemStats.MSpanSys": {
    "value": 81920
  },
  "skipper.runtime.MemStats.Mallocs": {
    "value": 1459
  },
  "skipper.runtime.MemStats.NextGC": {
    "value": 4194304
  },
  "skipper.runtime.MemStats.NumGC": {
    "value": 0
  },
  "skipper.runtime.MemStats.PauseTotalNs": {
    "value": 683352
  },
  "skipper.runtime.MemStats.StackInuse": {
    "value": 524288
  },
  "skipper.runtime.MemStats.StackSys": {
    "value": 524288
  },
  "skipper.runtime.MemStats.Sys": {
    "value": 9246968
  },
  "skipper.runtime.MemStats.TotalAlloc": {
    "value": 35127624
  },
  "skipper.runtime.NumCgoCall": {
    "value": 0
  },
  "skipper.runtime.NumGoroutine": {
    "value": 11
  },
  "skipper.runtime.NumThread": {
    "value": 9
  }
},
"histograms": {
  "skipper.runtime.MemStats.PauseNs": {
    "75%": 82509.25,
    "95%": 132609,
    "99%": 132609,
    "99.9%": 132609,
    "count": 12,
    "max": 132609,
    "mean": 56946,
    "median": 39302.5,
    "min": 28749,
    "stddev": 31567.015005117817
  }
}

Go metrics - Prometheus

# HELP go_gc_duration_seconds A summary of the pause duration of garbage collection cycles.
# TYPE go_gc_duration_seconds summary
go_gc_duration_seconds{quantile="0"} 4.7279e-05
go_gc_duration_seconds{quantile="0.25"} 5.9291e-05
go_gc_duration_seconds{quantile="0.5"} 7.4e-05
go_gc_duration_seconds{quantile="0.75"} 9.55e-05
go_gc_duration_seconds{quantile="1"} 0.000199667
go_gc_duration_seconds_sum 0.001108339
go_gc_duration_seconds_count 13
# HELP go_goroutines Number of goroutines that currently exist.
# TYPE go_goroutines gauge
go_goroutines 13
# HELP go_info Information about the Go environment.
# TYPE go_info gauge
go_info{version="go1.21.3"} 1
# HELP go_memstats_alloc_bytes Number of bytes allocated and still in use.
# TYPE go_memstats_alloc_bytes gauge
go_memstats_alloc_bytes 6.4856e+06
# HELP go_memstats_alloc_bytes_total Total number of bytes allocated, even if freed.
# TYPE go_memstats_alloc_bytes_total counter
go_memstats_alloc_bytes_total 4.1797384e+07
# HELP go_memstats_buck_hash_sys_bytes Number of bytes used by the profiling bucket hash table.
# TYPE go_memstats_buck_hash_sys_bytes gauge
go_memstats_buck_hash_sys_bytes 1.462151e+06
# HELP go_memstats_frees_total Total number of frees.
# TYPE go_memstats_frees_total counter
go_memstats_frees_total 507460
# HELP go_memstats_gc_sys_bytes Number of bytes used for garbage collection system metadata.
# TYPE go_memstats_gc_sys_bytes gauge
go_memstats_gc_sys_bytes 4.549296e+06
# HELP go_memstats_heap_alloc_bytes Number of heap bytes allocated and still in use.
# TYPE go_memstats_heap_alloc_bytes gauge
go_memstats_heap_alloc_bytes 6.4856e+06
# HELP go_memstats_heap_idle_bytes Number of heap bytes waiting to be used.
# TYPE go_memstats_heap_idle_bytes gauge
go_memstats_heap_idle_bytes 7.421952e+06
# HELP go_memstats_heap_inuse_bytes Number of heap bytes that are in use.
# TYPE go_memstats_heap_inuse_bytes gauge
go_memstats_heap_inuse_bytes 8.372224e+06
# HELP go_memstats_heap_objects Number of allocated objects.
# TYPE go_memstats_heap_objects gauge
go_memstats_heap_objects 70159
# HELP go_memstats_heap_released_bytes Number of heap bytes released to OS.
# TYPE go_memstats_heap_released_bytes gauge
go_memstats_heap_released_bytes 6.47168e+06
# HELP go_memstats_heap_sys_bytes Number of heap bytes obtained from system.
# TYPE go_memstats_heap_sys_bytes gauge
go_memstats_heap_sys_bytes 1.5794176e+07
# HELP go_memstats_last_gc_time_seconds Number of seconds since 1970 of last garbage collection.
# TYPE go_memstats_last_gc_time_seconds gauge
go_memstats_last_gc_time_seconds 1.6987664839728708e+09
# HELP go_memstats_lookups_total Total number of pointer lookups.
# TYPE go_memstats_lookups_total counter
go_memstats_lookups_total 0
# HELP go_memstats_mallocs_total Total number of mallocs.
# TYPE go_memstats_mallocs_total counter
go_memstats_mallocs_total 577619
# HELP go_memstats_mcache_inuse_bytes Number of bytes in use by mcache structures.
# TYPE go_memstats_mcache_inuse_bytes gauge
go_memstats_mcache_inuse_bytes 19200
# HELP go_memstats_mcache_sys_bytes Number of bytes used for mcache structures obtained from system.
# TYPE go_memstats_mcache_sys_bytes gauge
go_memstats_mcache_sys_bytes 31200
# HELP go_memstats_mspan_inuse_bytes Number of bytes in use by mspan structures.
# TYPE go_memstats_mspan_inuse_bytes gauge
go_memstats_mspan_inuse_bytes 302904
# HELP go_memstats_mspan_sys_bytes Number of bytes used for mspan structures obtained from system.
# TYPE go_memstats_mspan_sys_bytes gauge
go_memstats_mspan_sys_bytes 309624
# HELP go_memstats_next_gc_bytes Number of heap bytes when next garbage collection will take place.
# TYPE go_memstats_next_gc_bytes gauge
go_memstats_next_gc_bytes 8.206808e+06
# HELP go_memstats_other_sys_bytes Number of bytes used for other system allocations.
# TYPE go_memstats_other_sys_bytes gauge
go_memstats_other_sys_bytes 2.402169e+06
# HELP go_memstats_stack_inuse_bytes Number of bytes in use by the stack allocator.
# TYPE go_memstats_stack_inuse_bytes gauge
go_memstats_stack_inuse_bytes 983040
# HELP go_memstats_stack_sys_bytes Number of bytes obtained from system for stack allocator.
# TYPE go_memstats_stack_sys_bytes gauge
go_memstats_stack_sys_bytes 983040
# HELP go_memstats_sys_bytes Number of bytes obtained from system.
# TYPE go_memstats_sys_bytes gauge
go_memstats_sys_bytes 2.5531656e+07
# HELP go_threads Number of OS threads created.
# TYPE go_threads gauge
go_threads 22
# HELP process_cpu_seconds_total Total user and system CPU time spent in seconds.
# TYPE process_cpu_seconds_total counter
process_cpu_seconds_total 0.42
# HELP process_max_fds Maximum number of open file descriptors.
# TYPE process_max_fds gauge
process_max_fds 60000
# HELP process_open_fds Number of open file descriptors.
# TYPE process_open_fds gauge
process_open_fds 10
# HELP process_resident_memory_bytes Resident memory size in bytes.
# TYPE process_resident_memory_bytes gauge
process_resident_memory_bytes 4.2811392e+07
# HELP process_start_time_seconds Start time of the process since unix epoch in seconds.
# TYPE process_start_time_seconds gauge
process_start_time_seconds 1.69876646736e+09
# HELP process_virtual_memory_bytes Virtual memory size in bytes.
# TYPE process_virtual_memory_bytes gauge
process_virtual_memory_bytes 2.823462912e+09
# HELP process_virtual_memory_max_bytes Maximum amount of virtual memory available in bytes.
# TYPE process_virtual_memory_max_bytes gauge
process_virtual_memory_max_bytes 1.8446744073709552e+19

Redis - Rate limiting metrics

System metrics exposed by the redisclient:

• skipper.swarm.redis.shards: known Redis shards to the skipper ringclient
• skipper.swarm.redis.hits: number of times free connection was found in the pool
• skipper.swarm.redis.misses: number of times free connection was NOT found in the pool
• skipper.swarm.redis.timeouts: number of times a wait timeout occurred
• skipper.swarm.redis.staleconns: number of stale connections removed from the pool
• skipper.swarm.redis.idleconns: number of idle connections in the pool
• skipper.swarm.redis.totalconns: number of total connections in the pool

Timer metrics for the latencies and errors of the communication with the auxiliary Redis instances are enabled by the default, and exposed among the timers via the following keys:

• skipper.swarm.redis.query.allow.success: successful allow requests to the rate limiter, ungrouped
• skipper.swarm.redis.query.allow.failure: failed allow requests to the rate limiter, ungrouped, where the redis communication failed
• skipper.swarm.redis.query.retryafter.success.: successful allow requests to the rate limiter, grouped by the rate limiter group name when used
• skipper.swarm.redis.query.retryafter.failure.: failed allow requests to the rate limiter, ungrouped, where the redis communication faileds, grouped by the rate limiter group name when used

See more details about rate limiting at Rate limiting.

Open Policy Agent metrics

If Open Policy Agent filters are enabled, the following counters show up in the /metrics endpoint. The bundle-name is the first parameter of the filter so that for example increased error codes can be attributed to a specific source bundle / system.

• skipper.opaAuthorizeRequest.custom.decision.allow.<bundle-name>
• skipper.opaAuthorizeRequest.custom.decision.deny.<bundle-name>
• skipper.opaAuthorizeRequest.custom.decision.err.<bundle-name>
• skipper.opaServeResponse.custom.decision.allow.<bundle-name>
• skipper.opaServeResponse.custom.decision.deny.<bundle-name>
• skipper.opaServeResponse.custom.decision.err.<bundle-name>

The following timer metrics are exposed per used bundle-name:

• skipper.opaAuthorizeRequest.custom.eval_time.<bundle-name>
• skipper.opaServeResponse.custom.eval_time.<bundle-name>

RouteSRV metrics

RouteSRV metrics expose the following metrics in Prometheus format:

% curl http://127.0.0.1:9911/metrics
# 8< Go metrics >8

# HELP routesrv_backend_combined_duration_seconds Duration in seconds of a proxy backend combined.
# TYPE routesrv_backend_combined_duration_seconds histogram
routesrv_backend_combined_duration_seconds_bucket{le="0.005"} 5
routesrv_backend_combined_duration_seconds_bucket{le="0.01"} 5
routesrv_backend_combined_duration_seconds_bucket{le="0.025"} 5
routesrv_backend_combined_duration_seconds_bucket{le="0.05"} 5
routesrv_backend_combined_duration_seconds_bucket{le="0.1"} 5
routesrv_backend_combined_duration_seconds_bucket{le="0.25"} 5
routesrv_backend_combined_duration_seconds_bucket{le="0.5"} 5
routesrv_backend_combined_duration_seconds_bucket{le="1"} 5
routesrv_backend_combined_duration_seconds_bucket{le="2.5"} 5
routesrv_backend_combined_duration_seconds_bucket{le="5"} 5
routesrv_backend_combined_duration_seconds_bucket{le="10"} 5
routesrv_backend_combined_duration_seconds_bucket{le="+Inf"} 5
routesrv_backend_combined_duration_seconds_sum 0.001349441
routesrv_backend_combined_duration_seconds_count 5
# HELP routesrv_backend_duration_seconds Duration in seconds of a proxy backend.
# TYPE routesrv_backend_duration_seconds histogram
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="0.005"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="0.01"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="0.025"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="0.05"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="0.1"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="0.25"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="0.5"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="1"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="2.5"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="5"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="10"} 5
routesrv_backend_duration_seconds_bucket{host="",route="routersv",le="+Inf"} 5
routesrv_backend_duration_seconds_sum{host="",route="routersv"} 0.001349441
routesrv_backend_duration_seconds_count{host="",route="routersv"} 5
# HELP routesrv_custom_gauges Gauges number of custom metrics.
# TYPE routesrv_custom_gauges gauge
routesrv_custom_gauges{key="polling_started_timestamp"} 1.69876646881321e+09
routesrv_custom_gauges{key="redis_endpoints"} 1
routesrv_custom_gauges{key="routes.byte"} 91378
routesrv_custom_gauges{key="routes.initialized_timestamp"} 1.6987664689696188e+09
routesrv_custom_gauges{key="routes.total"} 258
routesrv_custom_gauges{key="routes.updated_timestamp"} 1.698766468969631e+09
# HELP routesrv_custom_total Total number of custom metrics.
# TYPE routesrv_custom_total counter
routesrv_custom_total{key="200"} 5

Metrics explanation:

• routesrv_custom_total{key="200"} 5: 5 requests were responded with status code 200 by the current routesrv version v0.18.38.
• routesrv_custom_gauges{key="polling_started_timestamp"} 1.69876646881321e+09: routesrv started to poll at 1.69876646881321e+09 seconds of UNIX beginning (2023-10-31 16:34:28 1705425/2097152 +0100).
• routesrv_custom_gauges{key="redis_endpoints"} 1: The routes endpoint /swarm/redis/shards was called 1 times
• routesrv_custom_gauges{key="routes.byte"} 91378: The number of bytes that are served at /routes is 91378.
• routesrv_custom_gauges{key="routes.initialized_timestamp"} 1.6987664689696188e+09: routesrv initialized the routes at 1.6987664689696188e+09 seconds of UNIX beginning. (2023-10-31 16:34:28 1016719/1048576 +0100)
• routesrv_custom_gauges{key="routes.total"} 258: The number of routes that are served at /routes are 258.
• routesrv_custom_gauges{key="routes.updated_timestamp"} 1.698766468969631e+09: The last update of routes by routesrv was at 1.698766468969631e+09. (2023-10-31 16:34:28 4066927/4194304 +0100)

If you want to read more about RouteSRV see deploy RouteSRV.

OpenTracing

Skipper has support for different OpenTracing API vendors, including jaeger, lightstep and instana.

You can configure tracing implementations with a flag and pass information and tags to the tracer:

-opentracing=<vendor> component-name=skipper-ingress ... tag=cluster=mycluster ...

The best tested tracer is the lightstep tracer, because we use it in our setup. In case you miss something for your chosen tracer, please open an issue or pull request in our repository.

Skipper creates up to 5 different spans:

Some Tag details are added to all spans.

Ingress span

The Ingress span is active from getting the request in Skipper’s main http handler, until we served the response to the client of the request.

Tags:

• component: skipper
• hostname: ip-10-149-64-142
• http.host: hostname.example.org
• http.method: GET
• http.path: /
• http.remote_addr: 10.149.66.207:14574
• http.url: /
• span.kind: server

Proxy span

The Proxy span starts just before executing the backend call.

Tags:

• component: skipper
• hostname: ip-10-149-65-70
• http.host: hostname.example.org
• http.method: GET
• http.path: /
• http.remote_addr:
• http.status_code: 200
• http.url: http://10.2.0.11:9090/
• skipper.route_id: kube_default__example_ingress_hostname_example_org____example_backend
• span.kind: client

Proxy span has logs to measure connect (dial_context), http roundtrip (http_roundtrip), stream headers from backend to client (stream_Headers), stream body from backend to client (streamBody.byte) and events by the Go runtime.

In addition to the manual instrumented proxy client logs, we use net/http/httptrace.ClientTrace to show events by the Go runtime. Full logs of the Proxy span:

• http_roundtrip: "start": just before http roundtrip
• http_roundtrip: "end": just after http roundtrip
• get_conn: "start": try to get a connection from the connection pool httptrace.ClientTrace
• get_conn: "end": got a connection from the connection pool httptrace.ClientTrace
• DNS: "start": try to resolve DNS httptrace.ClientTrace
• DNS: "end": got an IP httptrace.ClientTrace
• TLS: "start": start TLS connection httptrace.ClientTrace
• TLS: "end": established TLS connection httptrace.ClientTrace
• connect: "start": start to establish TCP/IP connection httptrace.ClientTrace
• connect: "end": established TCP/IP connection httptrace.ClientTrace
• wrote_headers: "done": wrote HTTP Headers into the socket httptrace.ClientTrace
• wrote_request: "done": wrote full HTTP Request into the socket httptrace.ClientTrace
• got_first_byte: "done": Got first byte of the HTTP response from the backend httptrace.ClientTrace

Request filters span

The request filters span logs show start and end events for each filter applied.

Response filters span

The response filters span logs show start and end events for each filter applied.

Request and response filters event logging can be disabled by setting the -opentracing-log-filter-lifecycle-events=false flag and span creation can be disabled altogether by the -opentracing-disable-filter-spans flag.

Auth filters span

Auth filters are special, because they might call an authorization endpoint, which should be also visible in the trace. This span can have the name “tokeninfo”, “tokenintrospection” or “webhook” depending on the filter used by the matched route.

Tags: - http.url: https://auth.example.org

The auth filters have trace log values start and end for DNS, TCP connect, TLS handshake and connection pool:

Open Policy Agent span

When one of the Open Policy Agent filters is used, child spans with the operation name open-policy-agent are added to the Trace.

The following tags are added to the Span, labels are taken from the OPA configuration YAML file as is and are not interpreted: - opa.decision_id=<decision id that was recorded> - opa.labels.<label1>=<value1>

The labels can for example be used to link to a specific decision in the control plane if they contain URL fragments for the receiving entity.

Redis rate limiting spans

Operation: redis_allow_check_card

Operation executed when the cluster rate limiting relies on the auxiliary Redis instances, and the Allow method checks if the rate exceeds the configured limit.

Operation: redis_allow_add_card

Operation setting the counter of the measured request rate for cluster rate limiting with auxiliary Redis instances.

Operation: redis_oldest_score

Operation querying the oldest request event for the rate limiting Retry-After header with cluster rate limiting when used with auxiliary Redis instances.

Dataclient

Dataclients poll some kind of data source for routes. To change the timeout for calls that polls a dataclient, which could be the Kubernetes API, use the following option:

-source-poll-timeout int
    polling timeout of the routing data sources, in milliseconds (default 3000)

Routing table information

Skipper allows you to get some runtime insights. You can get the current routing table from skipper with in the eskip file format:

curl localhost:9911/routes
*
-> "http://localhost:12345/"

You also can get the number of routes X-Count and the UNIX timestamp of the last route table update X-Timestamp, using a HEAD request:

curl -I localhost:9911/routes
HTTP/1.1 200 OK
Content-Type: text/plain
X-Count: 1
X-Timestamp: 1517777628
Date: Sun, 04 Feb 2018 20:54:31 GMT

The number of routes given is limited (1024 routes by default). In order to control this limits, there are two parameters: limit and offset. The limit defines the number of routes to get and offset where to start the list. Thanks to this, it’s possible to get the results paginated or getting all of them at the same time.

curl localhost:9911/routes?offset=200&limit=100

Passive health check (experimental)

Skipper has an option to automatically detect and mitigate faulty backend endpoints, this feature is called Passive Health Check(PHC).

PHC works the following way: the entire uptime is divided in chunks of period, per every period Skipper calculates the total amount of requests and amount of requests failed per every endpoint. While next period is going on, the Skipper takes a look at previous period and if the amount of requests in the previous period is more than min-requests and failed requests ratio is more than min-drop-probability for the given endpoints then Skipper will send reduced (the more max-drop-probability and failed requests ratio in previous period are, the stronger reduction is) amount of requests compared to amount sent without PHC. If the ratio of unhealthy endpoints is more than max-unhealthy-endpoints-ratio then PHC becomes fail-open. This effectively means if there are too many unhealthy endpoints PHC does not try to mitigate them any more and requests are sent like there is no PHC at all.

Having this, we expect less requests to fail because a lot of them would be sent to endpoints that seem to be healthy instead.

To enable this feature, you need to provide -passive-health-check option having forementioned parameters (period, min-requests, min-drop-probability, max-drop-probability, max-unhealthy-endpoints-ratio) defined. period, min-requests, max-drop-probability are required parameters, it is not possible for PHC to be enabled without them explicitly defined by user. min-drop-probability is implicitly defined as 0.0 if not explicitly set by user. max-unhealthy-endpoints-ratio is defined as 1.0 if not explicitly set by user. Valid examples of -passive-health-check are:

• -passive-health-check=period=1s,min-requests=10,min-drop-probability=0.05,max-drop-probability=0.9,max-unhealthy-endpoints-ratio=0.3
• -passive-health-check=period=1s,min-requests=10,max-drop-probability=0.9,max-unhealthy-endpoints-ratio=0.3
• -passive-health-check=period=1s,min-requests=10,min-drop-probability=0.05,max-drop-probability=0.9
• -passive-health-check=period=1s,min-requests=10,max-drop-probability=0.9

If -passive-health-check option is provided, but some required parameters are not defined, Skipper will not start. Skipper will run without this feature, if no -passive-health-check is provided at all.

The parameters of -passive-health-check option are:

• period=<duration> - the duration of stats reset period
• min-requests=<int> - the minimum number of requests per period per backend endpoint required to activate PHC for this endpoint
• min-drop-probabilty=[0.0 <= p < max-drop-probability) - the minimum possible probability of unhealthy endpoint being not considered while choosing the endpoint for the given request. The same value is in fact used as minimal failed requests ratio for PHC to be enabled for this endpoint
• max-drop-probabilty=(min-drop-probability < p <= 1.0] - the maximum possible probability of unhealthy endpoint being not considered while choosing the endpoint for the given request
• max-unhealthy-endpoints-ratio=[0.0 <= r <= 1.0] - the maximum ratio of unhealthy endpoints for PHC to try to mitigate ongoing requests

Metrics

A set of metrics will be exposed to track passive health check:

• passive-health-check.endpoints.dropped: Number of all endpoints dropped before load balancing a request, so after N requests and M endpoints are being dropped this counter would be N*M.
• passive-health-check.requests.passed: Number of unique requests where PHC was able to avoid sending them to unhealthy endpoints.

Memory consumption

While Skipper is generally not memory bound, some features may require some attention and planning regarding the memory consumption.

Potentially high memory consumers:

• Metrics
• Filters
• Slow Backends and chatty clients

Make sure you monitor backend latency, request and error rates. Additionally use Go metrics for the number of goroutines and threads, GC pause times should be less than 1ms in general, route lookup time, request and response filter times and heap memory.

Metrics

Memory consumption of metrics are dependent on enabled command line flags. Make sure to monitor Go metrics.

If you use -metrics-flavour=codahale,prometheus you enable both storage backends.

If you use the Prometheus histogram buckets -histogram-metric-buckets.

If you enable route based -route-backend-metrics -route-response-metrics -serve-route-metrics, error codes -route-response-metrics and host -serve-host-metrics based metrics it can count up. Please check the support listener endpoint (default 9911) to understand the usage:

% curl localhost:9911/metrics

By default, the route and host metrics include the labels for the request HTTP response status code and the HTTP method. You can customize it by setting -serve-method-metric=false and/or -serve-status-code-metric=false. These two flags will enable or disable the method and status code labels from your metrics reducing the number of metrics generated and memory consumption.

Filters

Ratelimit filter clusterClientRatelimit implementation using the swim based protocol, consumes roughly 15MB per filter for 100.000 individual clients and 10 maximum hits. Make sure you monitor Go metrics. Ratelimit filter clusterClientRatelimit implementation using the Redis ring based solution, adds 2 additional roundtrips to redis per hit. Make sure you monitor redis closely, because skipper will fallback to allow traffic if redis can not be reached.

Slow Backends

Skipper has to keep track of all active connections and http Requests. Slow Backends can pile up in number of connections, that will consume each a little memory per request. If you have high traffic per instance and a backend times out it can start to increase your memory consumption. Make sure you monitor backend latency, request and error rates.

Default Filters

Default filters will be applied to all routes created or updated.

Global Default Filters

Global default filters can be specified via two different command line flags -default-filters-prepend and -default-filters-append. Filters passed to these command line flags will be applied to all routes. The difference prepend and append is where in the filter chain these default filters are applied.

For example a user specified the route: r: * -> setPath("/foo") If you run skipper with -default-filters-prepend=enableAccessLog(4,5) -> lifo(100,100,"10s"), the actual route will look like this: r: * -> enableAccessLog(4,5) -> lifo(100,100,"10s") -> setPath("/foo"). If you run skipper with -default-filters-append=enableAccessLog(4,5) -> lifo(100,100,"10s"), the actual route will look like this: r: * -> setPath("/foo") -> enableAccessLog(4,5) -> lifo(100,100,"10s").

Kubernetes Default Filters

Kubernetes dataclient supports default filters. You can enable this feature by specifying default-filters-dir. The defined directory must contain per-service filter configurations, with file name following the pattern ${service}.${namespace}. The content of the files is the actual filter configurations. These filters are then prepended to the filters already defined in Ingresses.

The default filters are supposed to be used only if the filters of the same kind are not configured on the Ingress resource. Otherwise, it can and will lead to potentially contradicting filter configurations and race conditions, i.e. you should specify a specific filter either on the Ingress resource or as a default filter.

Scheduler

HTTP request schedulers change the queuing behavior of in-flight requests. A queue has two generic properties: a limit of requests and a concurrency level. The limit of request can be unlimited (unbounded queue), or limited (bounded queue). The concurrency level is either limited or unlimited.

The default scheduler is an unbounded first in first out (FIFO) queue, that is provided by Go’s standard library.

Skipper provides 2 last in first out (LIFO) filters to change the scheduling behavior.

On failure conditions, Skipper will return HTTP status code:

• 503 if the queue is full, which is expected on the route with a failing backend
• 502 if queue access times out, because the queue access was not fast enough
• 500 on unknown errors, please create an issue

The problem

Why should you use boundaries to limit concurrency level and limit the queue?

The short answer is resiliency. If you have one route, that is timing out, the request queue of skipper will pile up and consume much more memory, than before. This can lead to out of memory kill, which will affect all other routes. In this comment you can see the memory usage increased in Go’s standard library bufio package.

Why LIFO queue instead of FIFO queue?

In normal cases the queue should not contain many requests. Skipper is able to process many requests concurrently without letting the queue piling up. In overrun situations you might want to process at least some fraction of requests instead of timing out all requests. LIFO would not time out all requests within the queue, if the backend is capable of responding some requests fast enough.

A solution

Skipper has two filters lifo() and lifoGroup(), that can limit the number of requests for a route. A documented load test shows the behavior with an enabled lifo(100,100,"10s") filter for all routes, that was added by default. You can do this, if you pass the following flag to skipper: -default-filters-prepend=lifo(100,100,"10s").

Both LIFO filters will, use a last in first out queue to handle most requests fast. If skipper is in an overrun mode, it will serve some requests fast and some will timeout. The idea is based on Dropbox bandaid proxy, which is not opensource. Dropbox shared their idea in a public blogpost.

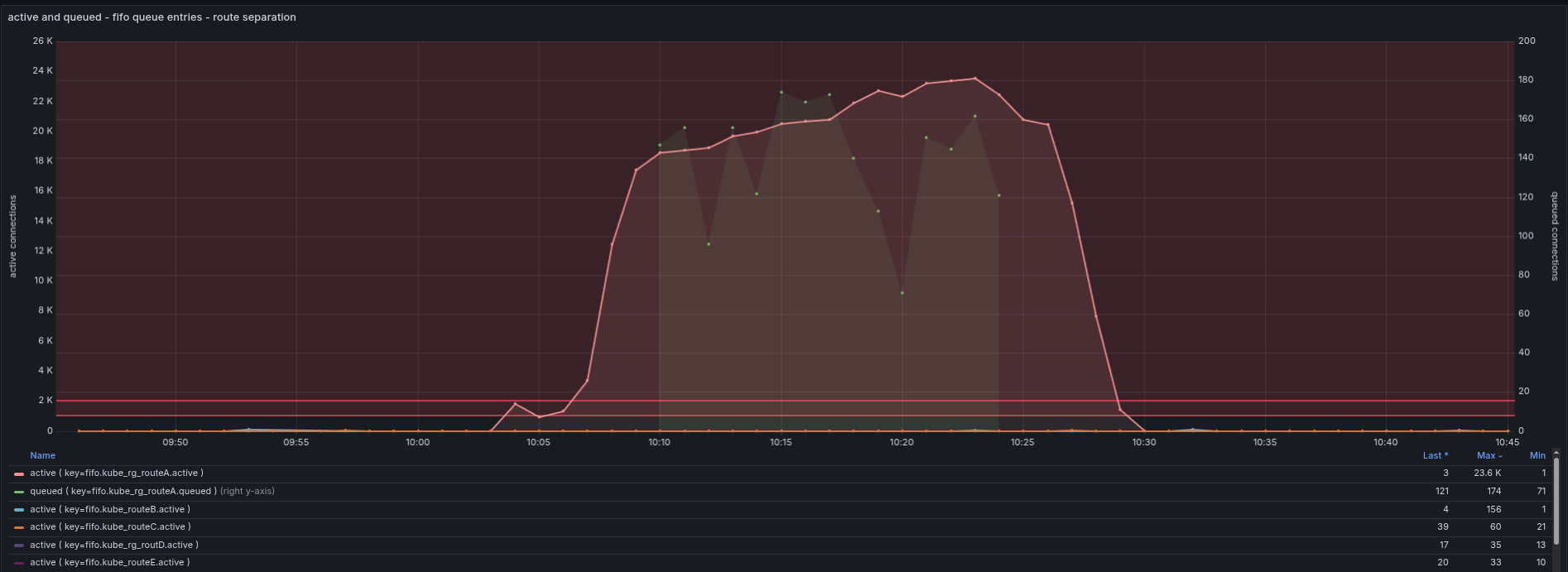

Skipper’s scheduler implementation makes sure, that one route will not interfere with other routes, if these routes are not in the same scheduler group. LifoGroup has a user chosen scheduler group and lifo() will get a per route unique scheduler group.

URI standards interpretation

Considering the following request path: /foo%2Fbar, Skipper can handle it in two different ways. The current default way is that when the request is parsed purely relying on the Go stdlib url package, this path becomes /foo/bar. According to RFC 2616 and RFC 3986, this may be considered wrong, and this path should be parsed as /foo%2Fbar. This is possible to achieve centrally, when Skipper is started with the -rfc-patch-path flag. It is also possible to allow the default behavior and only force the alternative interpretation on a per-route basis with the rfcPath() filter. See rfcPath().

If the second interpretation gets considered the right way, and the other one a bug, then the default value for this flag may become to be on.

Debugging Requests

Skipper provides filters, that can change HTTP requests. You might want to inspect how the request was changed, during the route processing and check the request that would be made to the backend. Luckily with -debug-listener=:9922, Skipper can provide you this information.

For example you have the following route:

kube_default__foo__foo_teapot_example_org_____foo: Host(/^foo[.]teapot[.]example[.]org$/) && PathSubtree("/")
  -> setRequestHeader("X-Foo", "hello-world")
  -> <roundRobin, "http://10.2.0.225:9090", "http://10.2.1.244:9090">;

If you sent now a request to the debug listener, that will be matched by the route, Skipper will respond with information that show you the matched route, the incoming request, the transformed request and all predicates and filters involved in the route processing:

% curl -s http://127.0.0.1:9922/ -H"Host: foo.teapot.example.org" | jq .
{
  "route_id": "kube_default__foo__foo_teapot_example_org_____foo",
  "route": "Host(/^foo[.]teapot[.]example[.]org$/) && PathSubtree(\"/\") -> setRequestHeader(\"X-Foo\", \"hello-world\") -> <roundRobin, \"http://10.2.0.225:9090\", \"http://10.2.1.244:9090\">",
  "incoming": {
    "method": "GET",
    "uri": "/",
    "proto": "HTTP/1.1",
    "header": {
      "Accept": [
        "*/*"
      ],
      "User-Agent": [
        "curl/7.49.0"
      ]
    },
    "host": "foo.teapot.example.org",
    "remote_address": "127.0.0.1:32992"
  },
  "outgoing": {
    "method": "GET",
    "uri": "",
    "proto": "HTTP/1.1",
    "header": {
      "Accept": [
        "*/*"
      ],
      "User-Agent": [
        "curl/7.49.0"
      ],
      "X-Foo": [
        "hello-world"
      ]
    },
    "host": "foo.teapot.example.org"
  },
  "response_mod": {
    "header": {
      "Server": [
        "Skipper"
      ]
    }
  },
  "filters": [
    {
      "name": "setRequestHeader",
      "args": [
        "X-Foo",
        "hello-world"
      ]
    }
  ],
  "predicates": [
    {
      "name": "PathSubtree",
      "args": [
        "/"
      ]
    }
  ]
}

Profiling

Go profiling is explained in Go’s diagnostics documentation.

Profiling skipper or RouteSRV

To enable profiling in skipper you have to use -enable-profile. This will start a profiling route at /debug/pprof/profile on the support listener, which defaults to :9911.

Profiling example

Start skipper with enabled profiling:

skipper -inline-routes='r1: * -> inlineContent("hello") -> <shunt>' -enable-profile

Use Go tool pprof to download profiling sample to analyze (sample is not from the example):

% go tool pprof http://127.0.0.1:9911
Fetching profile over HTTP from http://127.0.0.1:9911/debug/pprof/profile
Saved profile in /$HOME/pprof/pprof.skipper.samples.cpu.004.pb.gz
File: skipper
Build ID: 272c31a7bd60c9fabb637bdada37a3331a919b01
Type: cpu
Time: Oct 7, 2020 at 6:17pm (CEST)
Duration: 30s, Total samples = 0
No samples were found with the default sample value type.
Try "sample_index" command to analyze different sample values.
Entering interactive mode (type "help" for commands, "o" for options)
(pprof) top
Showing nodes accounting for 2140ms, 50.00% of 4280ms total
Dropped 330 nodes (cum <= 21.40ms)
Showing top 10 nodes out of 303
      flat  flat%   sum%        cum   cum%
     560ms 13.08% 13.08%      640ms 14.95%  syscall.Syscall
     420ms  9.81% 22.90%      430ms 10.05%  runtime.nanotime
     410ms  9.58% 32.48%      410ms  9.58%  runtime.futex
     170ms  3.97% 36.45%      450ms 10.51%  runtime.mallocgc
     170ms  3.97% 40.42%      180ms  4.21%  runtime.walltime
     160ms  3.74% 44.16%      220ms  5.14%  runtime.scanobject
      80ms  1.87% 46.03%       80ms  1.87%  runtime.heapBitsSetType
      70ms  1.64% 47.66%       70ms  1.64%  runtime.epollwait
      50ms  1.17% 48.83%      120ms  2.80%  compress/flate.(*compressor).deflate
      50ms  1.17% 50.00%       50ms  1.17%  encoding/json.stateInString
(pprof) web
--> opens browser with SVG

Response serving

When serving a response from a backend, Skipper serves first the HTTP response headers. After that Skipper streams the response payload and uses one 8kB buffer to stream the data through this 8kB buffer. It uses Flush() to make sure the 8kB chunk is written to the client. Details can be observed by opentracing in the logs of the Proxy Span.

Forwarded headers

Skipper can be configured to add X-Forwarded-* headers:

  -forwarded-headers value
        comma separated list of headers to add to the incoming request before routing
        X-Forwarded-For sets or appends with comma the remote IP of the request to the X-Forwarded-For header value
        X-Forwarded-Host sets X-Forwarded-Host value to the request host
        X-Forwarded-Port=<port> sets X-Forwarded-Port value
        X-Forwarded-Proto=<http|https> sets X-Forwarded-Proto value
  -forwarded-headers-exclude-cidrs value
        disables addition of forwarded headers for the remote host IPs from the comma separated list of CIDRs

Converting Routes

For migrations you need often to convert X to Y. This is also true in case you want to switch one predicate to another one or one filter to another one. In skipper we have -edit-route and -clone-route that either modifies matching routes or copy matching routes and change the copy.

Example:

A route with edit-route

% skipper -inline-routes='Path("/foo") -> setResponseHeader("X-Foo","bar") -> inlineContent("hi") -> <shunt>' \
-edit-route='/inlineContent[(]["](.*)["][)]/inlineContent("modified \"$1\" response")/'
[APP]INFO[0000] Expose metrics in codahale format
[APP]INFO[0000] support listener on :9911
[APP]INFO[0000] route settings, reset, route: : Path("/foo") -> setResponseHeader("X-Foo", "bar") -> inlineContent("hi") -> <shunt>
[APP]INFO[0000] proxy listener on :9090
[APP]INFO[0000] TLS settings not found, defaulting to HTTP
[APP]INFO[0000] route settings received
[APP]INFO[0000] route settings applied

Modified route:

curl localhost:9911/routes
Path("/foo")
  -> setResponseHeader("X-Foo", "bar")
  -> inlineContent("modified \"hi\" response")
  -> <shunt>

Modified response body:

% curl -v http://localhost:9090/foo
*   Trying ::1...
* Connected to localhost (::1) port 9090 (#0)
> GET /foo HTTP/1.1
> Host: localhost:9090
> User-Agent: curl/7.49.0
> Accept: */*
>
< HTTP/1.1 200 OK
< Content-Length: 22
< Content-Type: text/plain; charset=utf-8
< Server: Skipper
< X-Foo: bar
< Date: Thu, 14 Oct 2021 08:41:53 GMT
<
* Connection #0 to host localhost left intact
modified "hi" response

With edit-route and -clone-route you can modify Predicates and Filters to convert from SourceFromLast() to ClientIP, for example if you want to migrate AWS cloud load balancer from Application Load Balancer to Network Load Balancer, you can use -clone-route='/SourceFromLast[(](.*)[)]/ClientIP($1)/' to create additional routes for

r: SourceFromLast("9.0.0.0/8","2001:67c:20a0::/48") -> ...`

to change to

r: SourceFromLast("9.0.0.0/8","2001:67c:20a0::/48") -> ...`
clone_r: ClientIP("9.0.0.0/8","2001:67c:20a0::/48") -> ...`

for migration time.

/ symbol is not the only option for the separator for -edit-route and -clone-route, any first symbol you will specify in those options could be used as separator. This could be useful for IP mask changes, for example, you can use -edit-route='#/26#/24#. In this case

r: SourceFromLast("9.0.0.0/26","2001:67c:20a0::/48") -> ...`

will be changed to

r: SourceFromLast("9.0.0.0/24","2001:67c:20a0::/48") -> ...`
